We provide comprehensive asphalt and bitumen testing equipment to ensure the quality and performance of road construction materials. Our equipment meets international standards for testing bituminous materials and asphalt mixtures.
B011
Centrifuge Extractor
Standard: ASTM D2172, AASHTO T164A, EN 12697-1
Used for the determination of bitumen percentage in bituminous mixtures. It consists of a removable, precision machined aluminium rotor bowl, placed into a cylindrical aluminium box.
View PDF Specs
B043 KIT
Digital Marshall Tester 50kN Capacity
Standards: EN 12697-34, 12697-23, 12697-12 ASTM D6927, D5581, D1559 | AASHTO T245 BS 598107 | NF P98-251-2
In this testing frame, the load is measured by an electric cell 50 kN capacity with high precision strain transducers; the flow is measured by an electronic displacement transducer 50 mm stroke and ± 0.1% linearity.
View PDF Specs
B055
Ductilometer with Cooling System
Standards: EN 13398, EN 13589 | ASTM D113, D6084 | AASHTO T51
Used to determine the bituminous ductility, that is the distance to which a briquette of molten bitumen can be extended under controlled conditions, before breaking. Equipped with incorporated refrigerating unit for tests with water temperature from + 5° to + 25°C.
View PDF Specs
NL 1012 X / 008

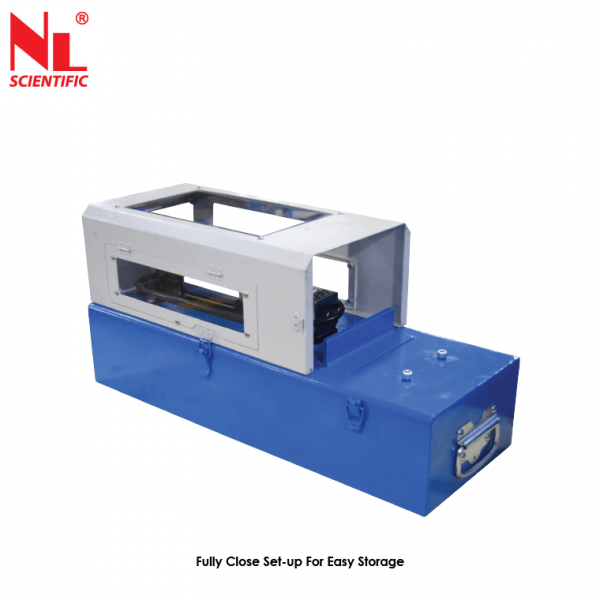

Point Load Tester, Digimatic
Standard: ASTM D5731
Point Load Tester is used to measure the strength values of rock specimen or concrete in geotechnical engineering. New rigid design load frame with hydraulic loading ram actuated by hand pump.
View PDF Specs
NL 2001 X / 005
Digital Penetrometer
Standard: EN 1426, ASTM D5, AASHTO T49
Newly invented instrument for determine the consistency of sample from the depth penetration thru penetration needle under standard load condition.
View PDF Specs
NL 2007 X
Vacuum Pyknometer
Standard: EN 12697-5, EN 13108, ASTM D2041, AASHTO T209 & T283
Used for determining the theoretical maximum specific gravity of uncompacted bituminous paving mixtures. It can also be used for the calculation of the percent air voids in compacted bituminous mixtures & the amount of bitumen absorbed by the aggregates.
View PDF SpecsOur Services Include:
- Supply of asphalt and bitumen testing equipment
- Calibration and verification services
- Equipment maintenance and repair
- Technical support and training
